The Cerri Project User Interface (v10.xx)

The Cerri Project user interface can be configured differently for different user profiles as defined by the Administrator. Refer to: "Defining user profiles and navigations by profiles" in the ADMIN guide.

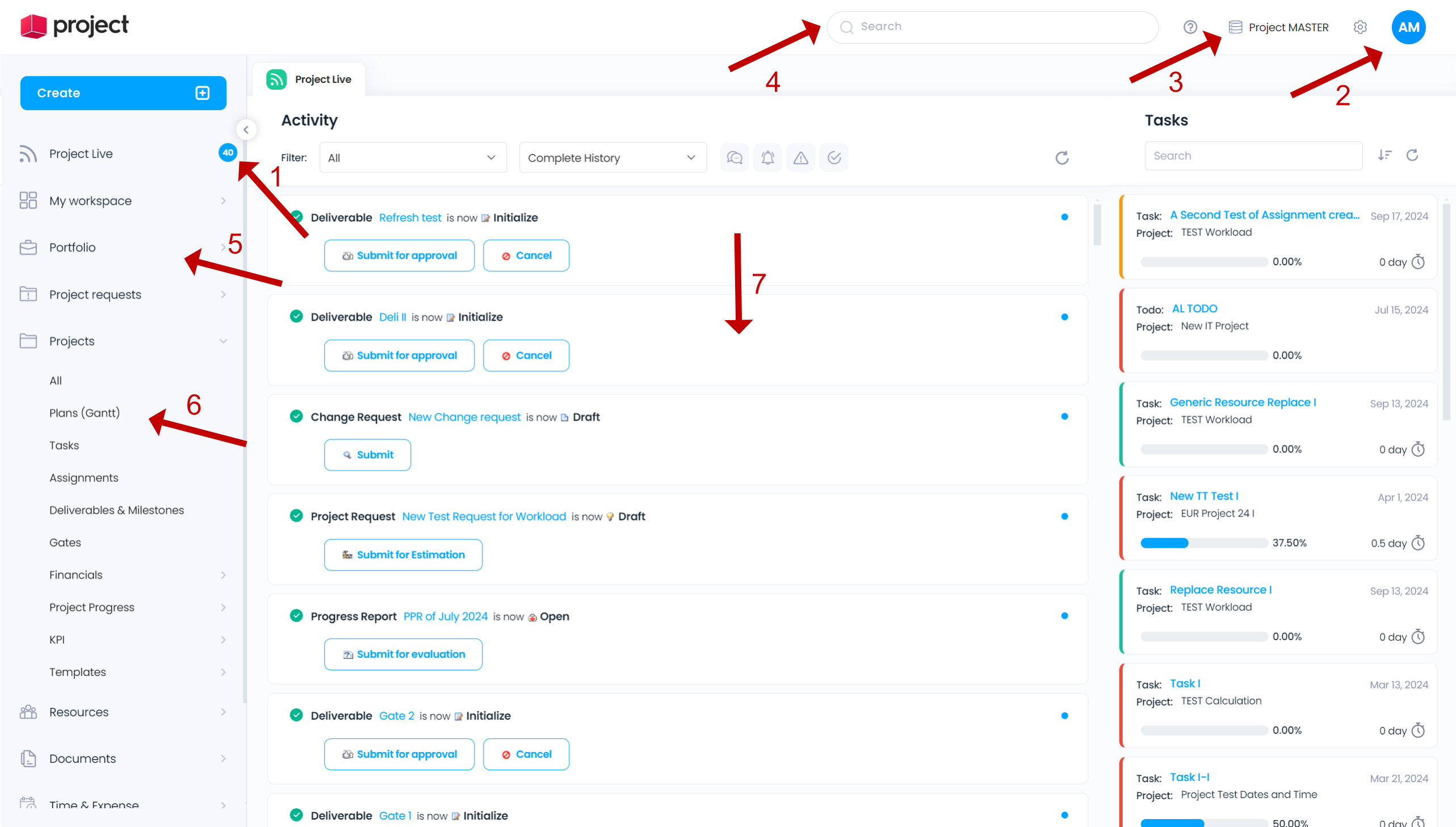

The Cerri Project user interface is made up of the following elements:

1	Project Live indicator	Displays the number of new Project Live! entries.
2	Avatar & Personal menu	Provides access to your personal settings.
3	Other environments	Displays only if additional sub-environments or databases (e.g. Archive) are available.
4	Search bar	Used to perform searches across the system.
5	Module menu bar	Enables navigation between modules.
6	Contextual navigation menu	Context-specific navigation bar providing access to different data in the active module.
7	Project Live feed	Displays the Project Live! home page with current tasks and chat history.

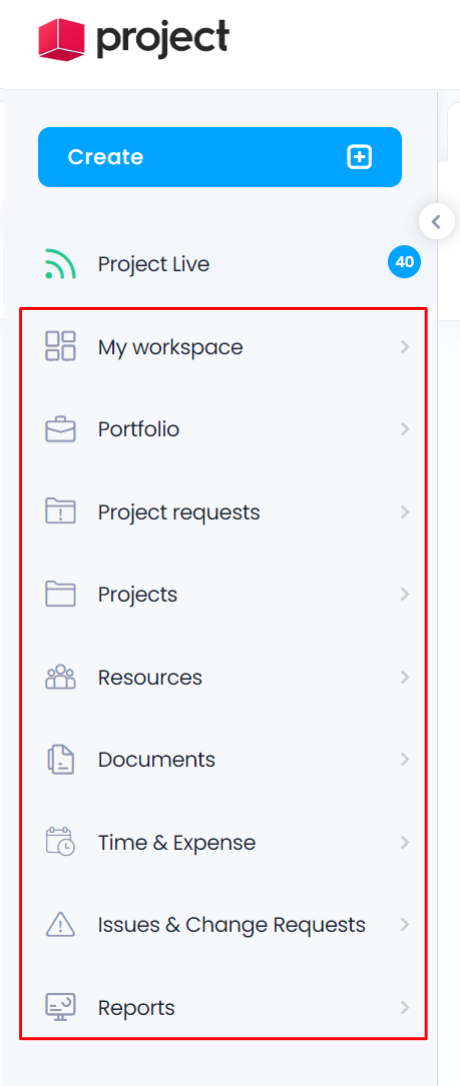

Module Menu Bar

Cerri Project's user interface is profile-driven. Users are granted access to specific modules, views, charts, and dashboards based on their assigned profiles.

The module menu bar allows users to easily navigate between modules. The active module is always displayed in red.

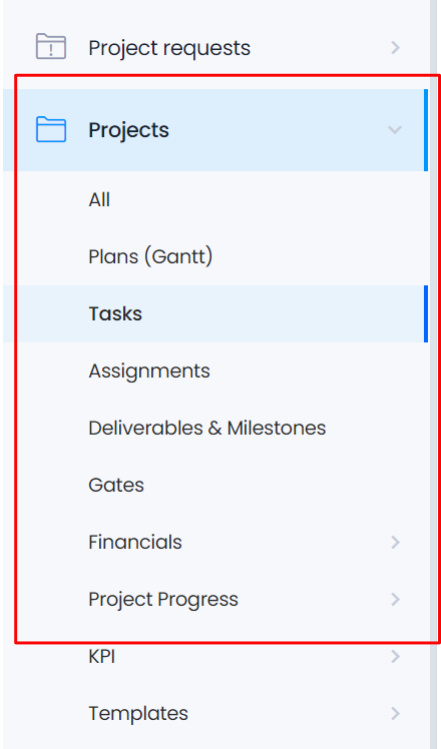

Contextual Navigation Menu

The title of the contextual navigation menu will always correspond to the active module. The contextual navigation bar provides users with access to and the ability to create information within the active module. Selected navigation points are highlighted in light blue.
