Manage your project phases, tasks and deliverables in a Gantt diagram.

• From navigation menu go to: Project > Waterfall projects

• Click on the desired project name to open it

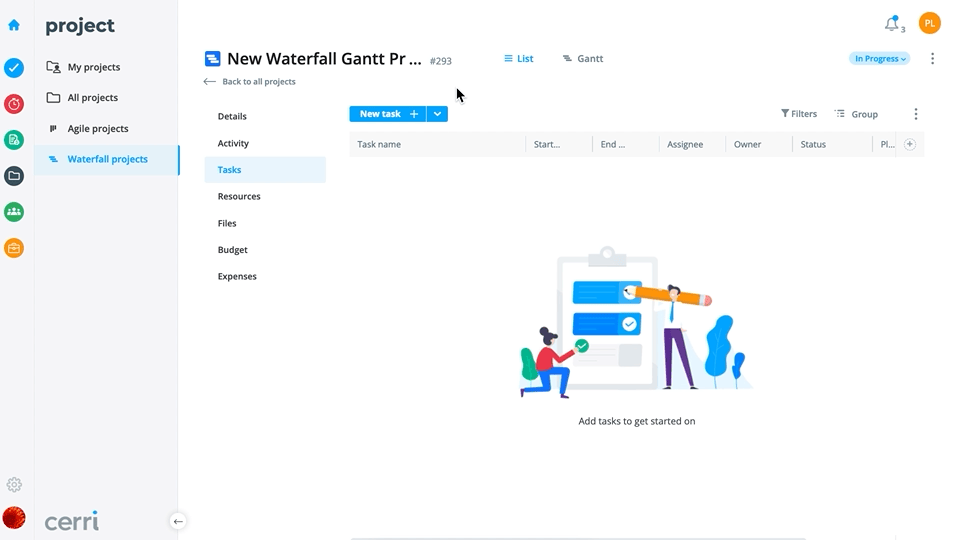

• Click on the Gantt icon at the top to view the project as a Gantt diagram

• Click on the Add item button at the top left to create a new task

• Enter a task name in the new entry that appears and optionally define start/end dates

• Select Auto link to create a new task that is automatically linked to the previous task

• Click on the Add item button at the top left to create a new phase

• Click on the Add deliverable button at the top left to create a new milestone

• Enter a deliverable name in the new entry that appears and optionally define start/end dates

• Drag and drop tasks/deliverables from the list to change their order

• Select tasks you wish to group in a phase then click on the Indent phase button to assign them to the phase above them in the list

• Click on the Add link button to create a dependency then click on the desired first task and drag the arrow that appears to the dependent task

• Click on the Save icon in the top left corner to save all your changes
